Recently, AIP successfully delivered differentiated test solutions customized for two domestic drone motor manufacturers on the same day. Adhering to the philosophy of “One Customer, One Solution,” AIP identifies specific pain points in production lines and delivers highly adaptive systems that meet diverse customer needs.

Ⅰ.Precision Strategy: Tackling Two Distinct Testing Challenges

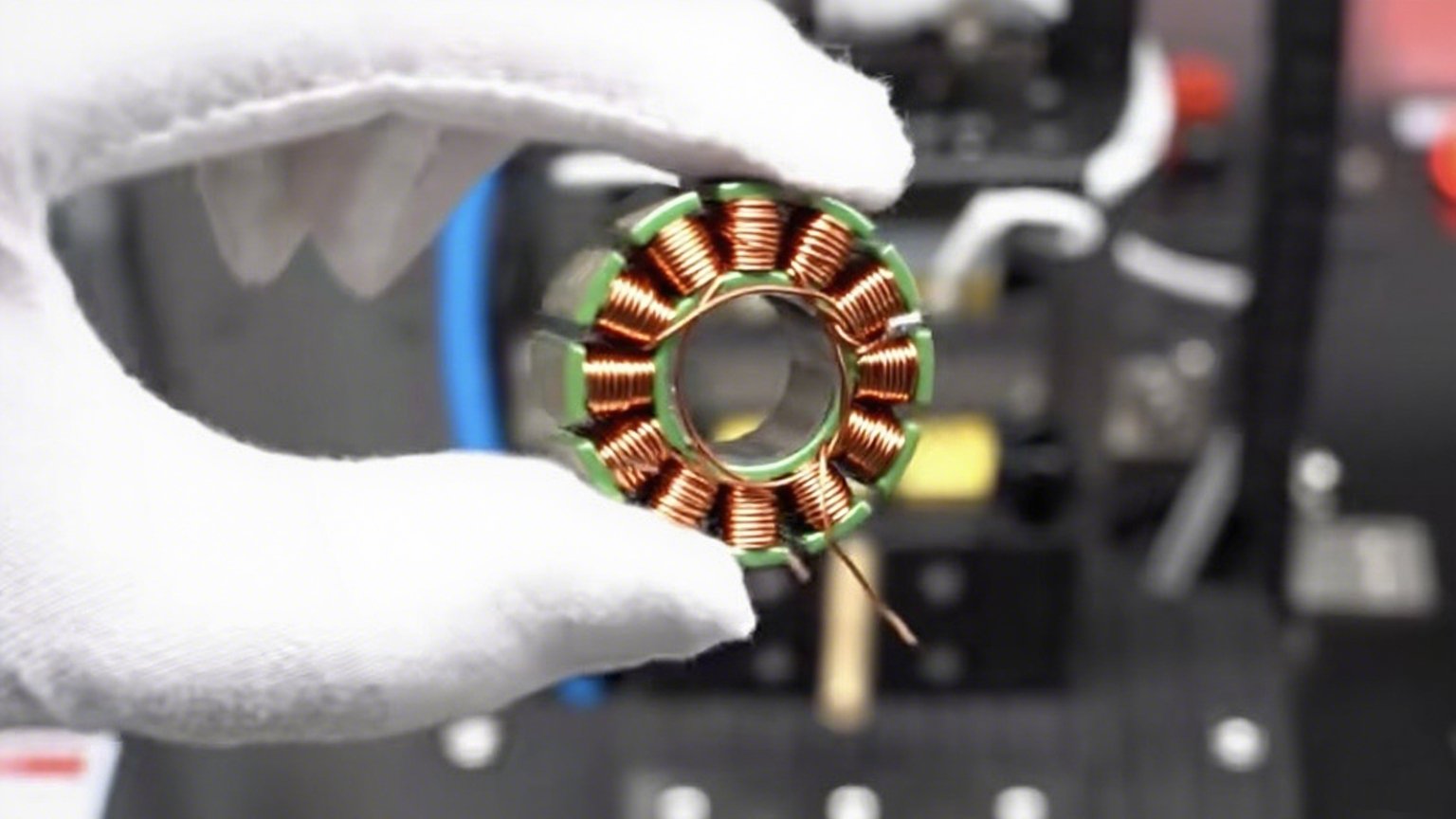

Although both orders fell within the stator testing sector for drone motors, they correspond to completely different production scenarios and technical challenges:

·Order 1

The difficulty lies in product diversity. The customer have multiple motor models, and all tests need to be completed on the same tester.

AIP Customized Solution：

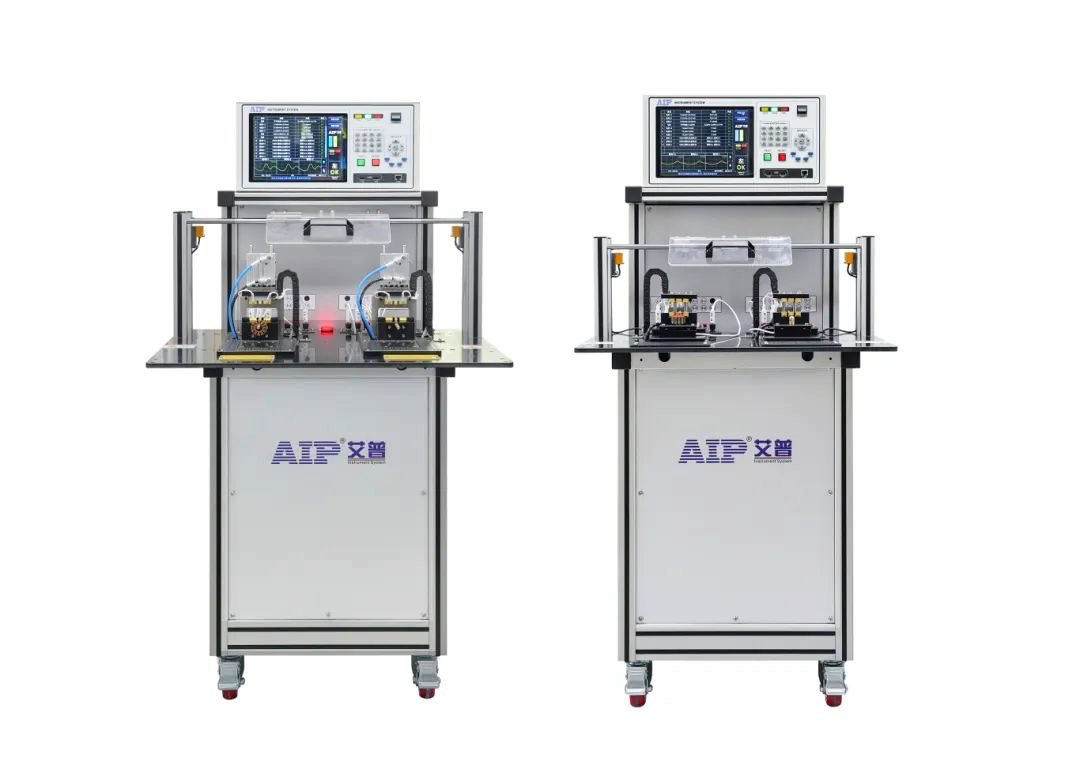

AIP designed a compatible tester supporting three types of fixtures, enabling quick changeover within 3 minutes. The tester integrates tests including AC Hi-pot/Insulation Resistance/Surge/DC Resistance/Inductance,etc.,and uses a dual-station serial testing mode to double efficiency.

·Order 2

The challenge lies in measuring micro resistance. The customer's product has a resistance as low as 5mΩ.Traditional methods are prone to interference from lead resistance, causing false results.

AIP Customized Solution：

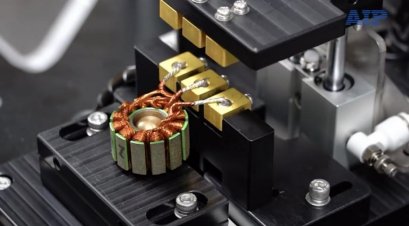

AIP utilizes four-wire detection technology to effectively avoid line resistance interference at extreme measurement ranges. It combines pneumatic downward pressure with a lateral probe penetration design to reduce contact resistance and ensure accurate and reliable data. This system also covers multiple electrical tests, but differs from the Order 1 in specific specifications and accuracy.

Ⅱ.Hardware-Software Synergy: Unleashing System High Performance

Both solutions, though customized, carry AIP’s core DNA of high performance and intelligence.

1. On the hardware side:

Each unit features an intuitive interface and a powerful ARM processor for high-speed data processing.

2. On the hardware side:

It is built on an open architecture, allowing user-defined test sequences, multi-level access control, cloud-based data sync, and multi-angle analysis—enabling end-to-end quality traceability.

To date, AIP's customized motor test solutions have been deployed across more than 20 industries, including new energy vehicles, humanoid robots, industrial automation, and special equipment. Its products reach over 60 countries and regions, serving more than 13,000 global customers.

Moving forward, AIP will continue to uphold“focus·winwin” philosophy, delivering advanced testing technologies, flexible customization, and comprehensive service to help customers worldwide improve competitiveness.If you are interested in drone motor stator tester , please contact us. AIP provides you with professional services and technical guidance.
