■ Wide range output capability of autorange

The AIP53 series power supplies expand the range of voltage and current combinations at full power, with a single power supply having an output range three times that of traditional power supplies.

AIP53 power supply output curve, standard power supply output curve

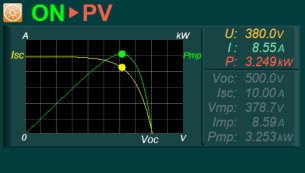

■ Real-time display of photovoltaic array simulation curves in oscilloscope mode

The AIP53 series power supplies incorporate standard SAS models such as EN50530 and Sandia, enabling simulation of the IV/PV curves of solar cell arrays. Users can easily generate and output curves after setting simple parameters, facilitating testing of the inverter's static and dynamic maximum power point tracking performance. This mode also features an oscilloscope function, displaying the IV/PV curves on a touchscreen interface and showing the current operating coordinates in real time, providing a simple and intuitive interface.

■ Parallel operation enables capacity expansion

When high power output is required, power supplies of the same specifications can be connected in parallel to expand the capacity of multiple units. Parallel connection is simple, requires no complicated operation, and ensures hardware synchronization for precision and reliability.

■ The color touchscreen, combined with physical buttons, offers flexible operation and comfortable use.

■ It features a graphical host computer interface, which can easily realize functions such as sequence testing and photovoltaic simulation.

Product Technical Parameters

Product front and back panel introduction

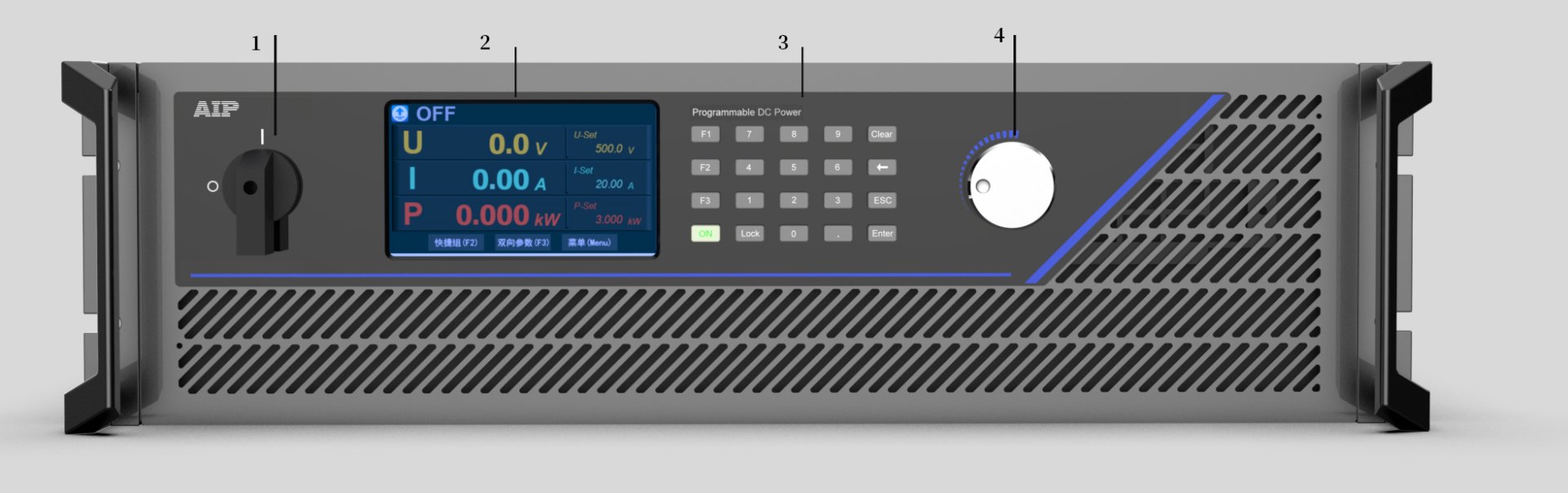

Product front introduction

1. Power switch: closes or disconnects the power supply to the system.

2.LCD display area: 4.3-inch color touch LCD, which displays settings or output information and power status. It can be operated directly by touch when the touch function is turned on.

3. Knob area: Used to modify settings; the middle button is used to access and adjust the knob speed.

4. Function Key Area: Provides quick access to functions.

  1) F1 - F4: These four buttons have different functions in different interfaces, making them convenient for users;

    Numeric keypad: Used to change power settings.

  2 ) 0 ~ 9 number keys: These are number keys for direct number input;

  3 ) ESC: Cancel key; cancels the current operation;

  4 ) ← key: Backspace key. When inputting numbers, you can use the backspace key to make corrections;

  5 ) Clear key: Clears the input numbers.

  6 ) ENTER key: Confirms the current operation;

  7) On/Off button and indicator light: Start/Stop button and start/stop indicator light. The button starts or stops the power output, and the light indicates whether the power is on.

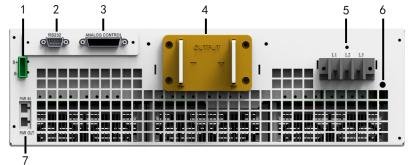

Rear panel diagram

① SENSE interface: Lead voltage drop compensation.

② Communication interfaces: Standard RS232, optional RS-485, GPIB, LAN, CAN, USB.

③ Analog control interface (optional): This interface allows for the connection of external analog signals to control the power supply output, including voltage, current, power setting, start/stop, and output monitoring.

④ Output terminals: divided into + and - terminals.

⑤ AC input connection terminal.

⑥ Grounding terminal.

Parallel interface (some models): PAR IN interface is the slave input terminal, and PAR OUT interface is the master output terminal.

Parts list introduction
