AIP87500 Multichannel Power Analyzer

AIP87500 Multichannel Power Analyzer

2-产品
Products
Home
Products
Power Analyzer

AIP87500 Multichannel Power Analyzer

The AIP87500 multichannel power analyzer is suitable for standby power consumption and power analysis of single-phase/three-phase household and commercial appliances; power analysis and efficiency of photovoltaic inverters; electrical performance measurement of electric vehicles and charging piles; power analysis of power electronics, transformers, and generators; power analysis of frequency converters and variable frequency motors; power analysis of switching power supplies; power analysis of lighting and LEDs, etc. AIP focuses on global motor testing and provides a variety of multichannel power analyzers!


AIP87500-Multichannel-Power-Analyzer-—-AIP
AIP87500-Multichannel-Power-Analyzer-—-AIP
Key Features
Technology
Specification
Add To Cart
Key Features

Multichannel:  1-6 channel measurement unit configuration, flexibly configurable as multi-channel single-phase, three-phase three×2, three-phase four×2, four-phase (DC + three-phase three) modes, etc., to meet the measurement needs of various loads (air conditioners, inverters, frequency converters, motors).

High precision: Utilizes a high-speed DSP processor and a 16-bit high-speed, high-precision AD converter, achieving a basic accuracy of 0.1% and a display data update cycle as fast as 100ms.

Width achievement Rate:  Single-channel current measurement up to 50A (optional 20A, 10A, 5A, 2A, 1A, etc., and supports mixed configurations), minimum power resolution of 0.1mW, meeting the requirements for standby power consumption measurement and rated power measurement.

Width frequency Features:  Dual-purpose for AC and DC signals, power measurement bandwidth DC, 0.5Hz~100kHz, suitable for power measurement of various standard and non-standard sinusoidal waveform loads.

Frequency measurement:  Six channels can perform frequency measurements simultaneously.

Line filtering:  Employs a 500Hz, 5.5kHz low-pass filter, capable of measuring the fundamental frequency of the PWM waveform and filtering out high-frequency interference from the switching power supply current.

Pass-through Transformer:  Features a transformation ratio function, supports standard Type II and Type VV voltage/current transformers; supports Type IV current sensors with BNC interface, maximum input voltage 10V, with optional high -current sensors.

Efficiency calculation:  It can simultaneously measure the input and output energy consumption of a device and calculate its efficiency.

Energy accumulation:  It can accumulate positive energy, reverse energy, and combined energy separately, and measure the buying and selling of energy.

Threshold alarm:  Each channel can be independently set with threshold values and measurement limits for voltage, current, power, power factor, etc., with automatic upper and lower limit determination and alarm activation.

Chinese/English Interface:  Users can switch between Chinese and English operating interfaces


Technology

Channel: Six-channel power analysis.

Basic accuracy: ±0.1%

Measurement bandwidth: DC, 0.5Hz~100kHz

Sampling rate: 100kSps

Maximum voltage: 1000Vrms (1500Vpk)

Maximum current: 50A/20A/10A/5A/2A/1A, supports mixed combinations, optional sensors

Specification

Ⅰ.Typical applications

■ Standby power consumption and power analysis of single-phase/three-phase household and commercial appliances.

■ Photovoltaic inverter power analysis and efficiency.

■ Electrical performance measurement of electric vehicles and charging piles.

■ Power electronics, transformers, and generator power analysis.

■ Power analysis of frequency converters and frequency conversion motors.

■ Switching power supply power analysis.

■ Lighting and LED power analysis.


Ⅱ.Main functions

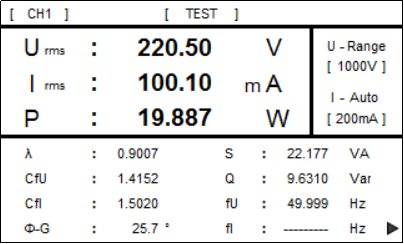

■ Single-channel measurement

    Single-channel measurement

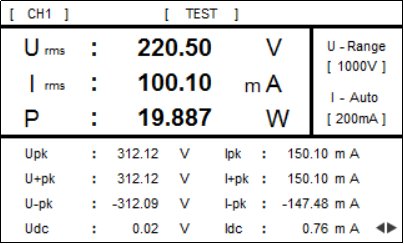

■ Peak detection

Peak detection

■ Efficiency Measurement

Efficiency Measurement

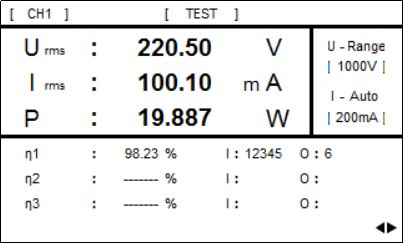

■ Electrical energy measurement

Electrical energy measurement

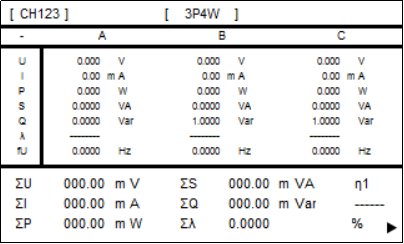

■ Three-channel measurement

Three-channel measurement

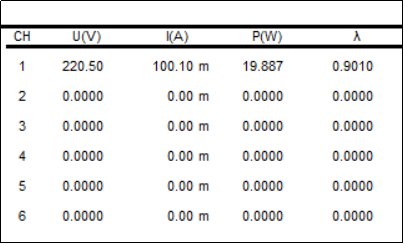

■ Six-channel measurement

Six-channel measurement

Ⅲ. Channel configuration

The multi-channel power analyzer supports various wiring methods, including 1P2W, 1P3W, 3P3W, 3V3A, 3P4W, etc. Users can configure the multi-channel mode according to their usage requirements to meet the measurement of parameters such as voltage, current, power, and efficiency of specific loads.


Wiring methodChannel 1Channel 2Channel 3Channel 4Channel 5Channel 6
1P2W Single-phase two-wire1P2W1P2W1P2W1P2W1P2W1P2W
1P3W Single-phase three-wire1P3W1P3W
3P3W Three-phase three-wire3P3W3P3W
3V3A Three-phase Three-wire3V3A3V3A
3P4W Three-phase Four-wire3P4W3P4W


Ⅳ.Product Application

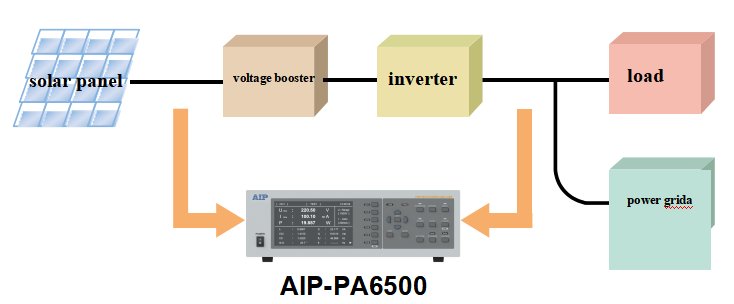

① Power measurement of photovoltaic inverter.

■ It complies with CGC/CF 004-2011 and CNCA/CTS 0004-2009A standards.

■ Voltage range: 0 - 1000V.

■ Current range: 0 - 50A / Current sensor.

■ It can simultaneously measure input and output (single-phase and three-phase) power as well as power factor.

■ Automatic efficiency calculation.

■ Bidirectional power measurement for electricity purchase and sale.

Wiring methodChannel 1Channel 2Channel 3Channel 4Channel 5Channel 6
Single-phase photovoltaic inverter

1P2W DC

1P2W AC

1P2W1P2W1P2W1P2W
Three-phase photovoltaic inverter

3P3W/3V3A/3P4W AC

1P2W DC

1P2W1P2W

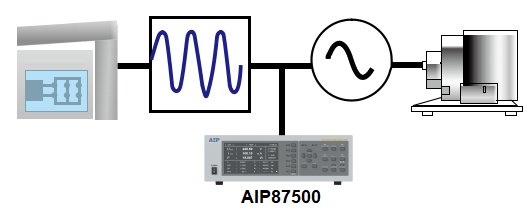

②Inverter Motor and Inverter Power Measurement

■ Compliant with GB12668 standard

■ Power bandwidth: DC, 0.5Hz - 100kHz

■ Current range: 0 - 50A / Current sensor

■ Capable of simultaneously measuring input and output power

■ Optional filter to remove carrier signal

Wiring methodChannel 1Channel 2Channel 3Channel 4Channel 5Channel 6
Frequency converter3P3W/3V3A/3P4W3P3W/3V3A/3P4W

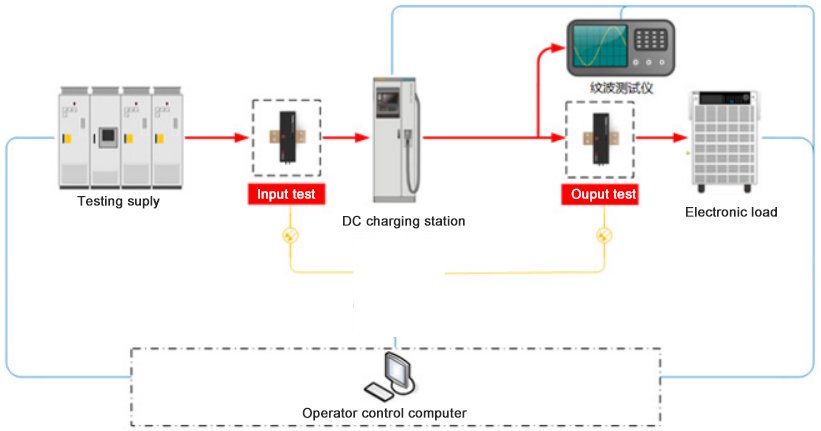

③ Charge station, electric vehicle performance measurement

■ Multi-channel, capable of simultaneously detecting multiple parameters: charging station performance, battery charging and discharging performance, power conversion performance, motor performance, etc.

■ AC/DC, maximum current 50A, can be expanded to larger current sensors.

■ High precision, basic accuracy 0.1%, minimum power resolution 0.1mW.

■ Capable of measuring the instantaneous effective value, average value, peak value of AC and DC signals, electrical energy, etc.



Wiring methodChannel 1Channel 2Channel 3Channel 4Channel 5Channel 6
Charging pile1P2W1P2W1P2W1P2W1P2W1P2W
3P3W/3V3A/3P4W3P3W/3V3A/3P4W
Electric vehicles1P2W1P2W1P2W1P2W1P2W1P2W

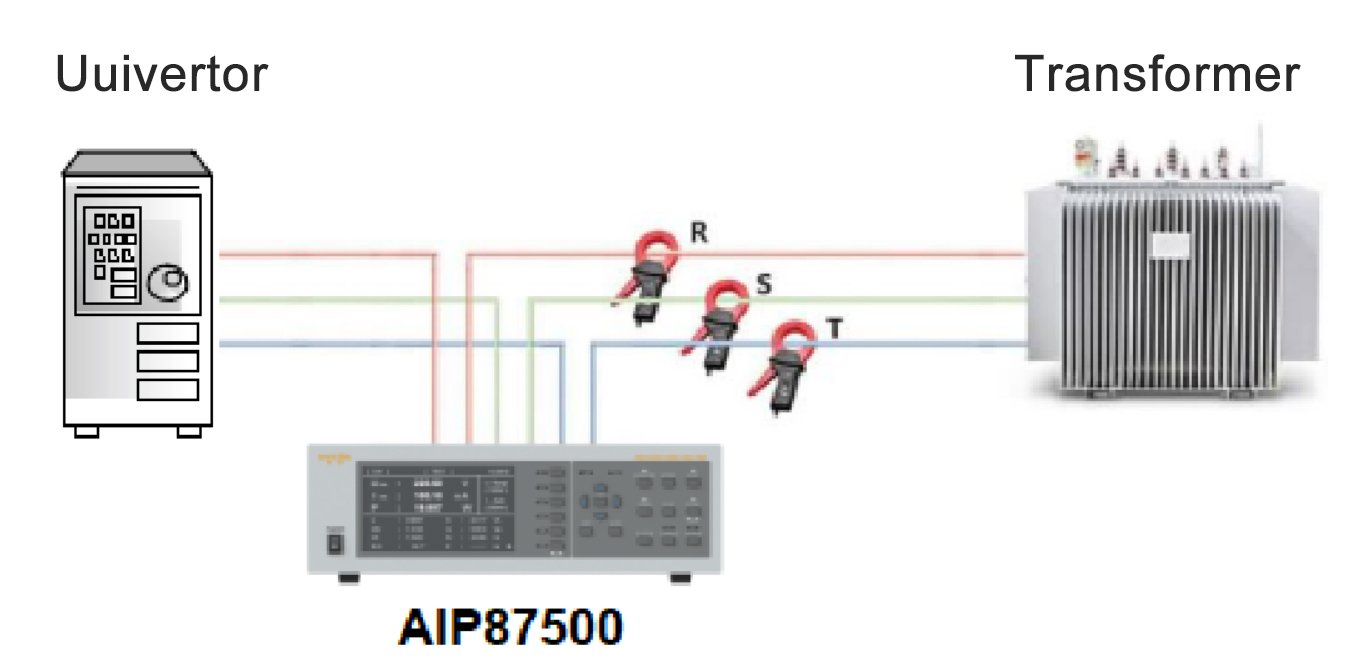

④Transformer power measurement

■ The accuracy range of power factor is as low as 0.001.

■ Multi-channel synchronous high-speed sampling.

■ Power bandwidth: DC, 0.5Hz to 100kHz.

■ Current range: 0 to 50A / Current sensor.

■ Can simultaneously measure input and output power.

Wiring methodChannel 1Channel 2Channel 3Channel 4Channel 5Channel 6
Transformer3P3W/3V3A/3P4W3P3W/3V3A/3P4W

⑤ Power supply, UPS power measurement

■ Current range: 0 - 1A / 2A / 5A / 10A / 20A / 50A

■ Power bandwidth: DC, 0.5Hz - 100kHz

■ Can simultaneously measure input and output (single-phase, three-phase) power, monitor battery charging and discharging capacity

■ Automatic efficiency calculation

Wiring methodChannel 1Channel 2Channel 3Channel 4Channel 5Channel 6
Power supply, UPS

1P2W  AC power input

1P2W  Battery

1P2W  Battery

3P3W/3V3A/3P4W  Power output

⑥ Home appliance performance evaluation, measurement of standby power consumption

■ Complies with IEC 62301-2011 standard

■ Current range: 0~1A/2A/5A/10A/20A/50A. It can measure rated power and standby power.

■ Minimum power resolution: 0.1mW

■ Automatically identifies the operating/stopping/idle status of the appliance and selectively accumulates electrical energy.

Wiring methodChannel 1Channel 1Channel 1Channel 1Channel 1Channel 1
Home appliances1P2W1P2W1P2W1P2W1P2W1P2W
Commercial appliances3P4W3P4W

⑦ Lighting, LED power measurement

■ Current range: 0 - 1A / 2A / 5A / 10A

■ Minimum power resolution: 0.1mW

■ Measurable parameters: input and output power of the driving power supply, power factor, efficiency

Wiring methodChannel 1Channel 2Channel 3Channel 4Channel 5Channel 6
Illumination1P2W1P2W1P2W1P2W1P2W1P2W

Lighting, LED power measurement
