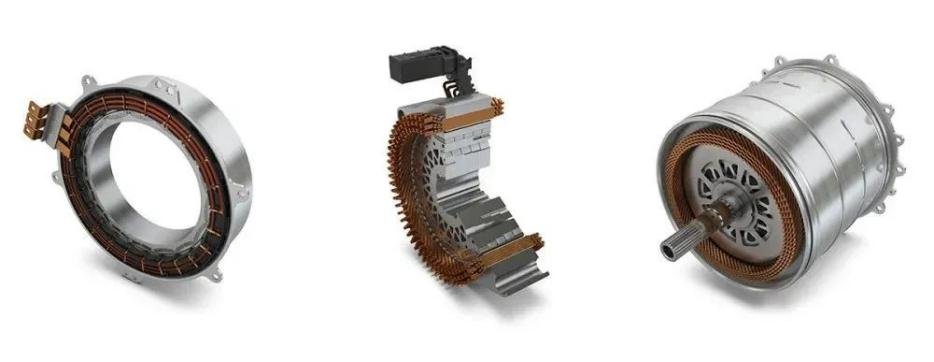

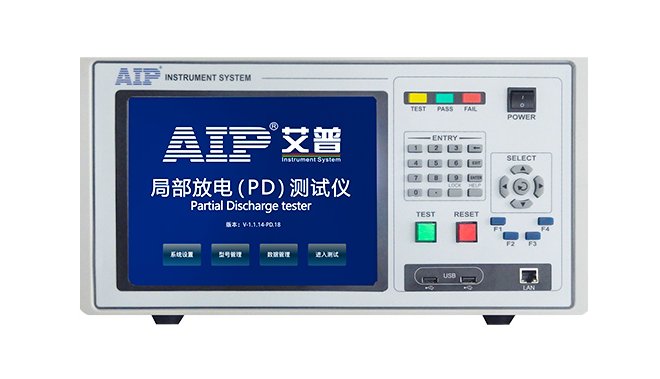

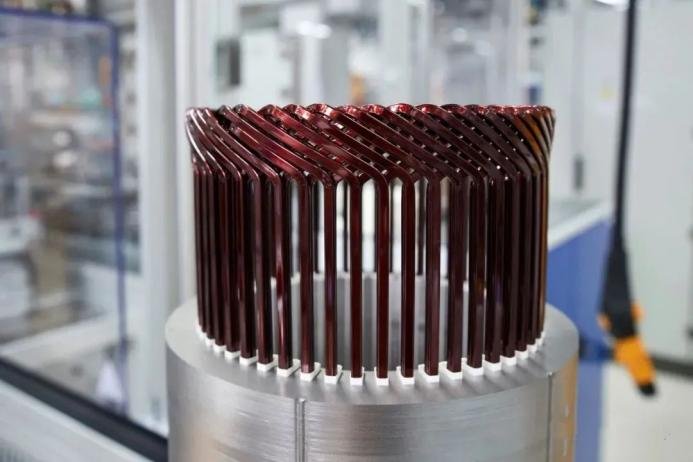

Designed to test the partial discharge (PD) performance of motor insulated wires, suitable for enamel-coated wires for high-voltage motors such as automotive motors, industrial motors, compressor motors, and explosion-proof motors.

Ⅰ.Features：

①High sensitivity and resolution: The system can detect weak partial discharge signals, improving the fault detection rate.

②High-frequency test: Sinusoidal wave test to detect the corona resistance of insulating paint.

③Data quantification: digitize the motor test and set upper and lower limits to achieve simple testing.

④Waveform display: product data is displayed in waveform form, which is intuitive, clear, and simple.

⑤Fast clamping: The clamping method is efficient and convenient, suitable for operation by personnel on the motor production line, reducing useless operation steps and meeting the production rhythm of the production line.

Ⅱ.Key Function:

①Test items: Partial Discharge (PD) test (corrosion resistance test)

②High efficiency: all tests can be done at one stop with one wire connection.

③Satisfies the current requirements for the insulation resistance of insulated wires in high-voltage motors.

④Essential for the development and testing of insulated wires.
