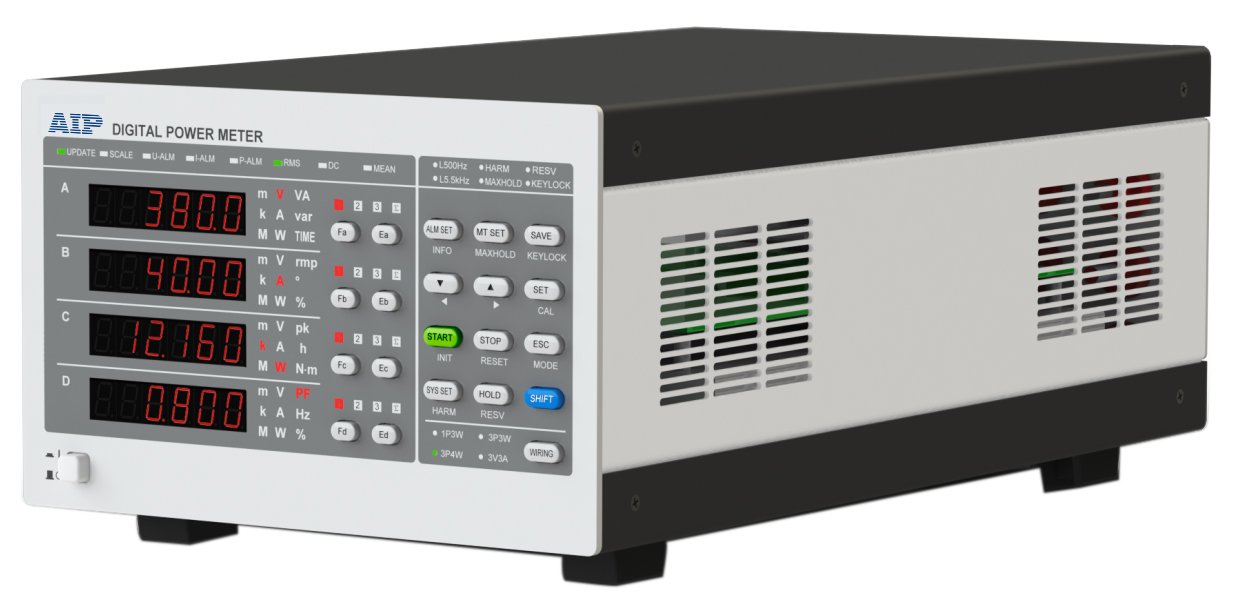

Three-phase power tester


Model No. AIP7931

■ Basic accuracy:   ±0.1%.

■ Measurement bandwidth:   45Hz~65Hz.

■ Maximum Voltage:   600Vrms.

■ Maximum current:   50A, supports current transformer.


Three-phase power tester

Main features

■ Three-phase:  Supports 1P2W, 1P3W, 3P3W, 3P4W, 3V3A measurement modes.

■ High accuracy:  Basic accuracy up to 0.1%.

■ Wide power:  Measurable current 50A, power minimum resolution 0.01W.

■ Transducer:  Ratio function, supports conventional I-I current transformers.

■ Threshold alarm: Thresholds and measurement thresholds for three-phase total voltage, current, and power can be set, with automatic upper and lower limit determination and alarm.


Product Applications

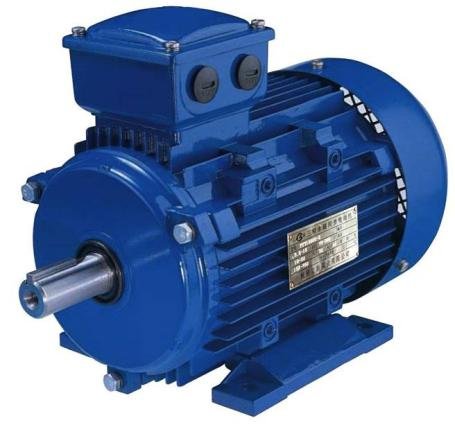

①Motor power

■ Power bandwidth 45Hz~65Hz

■ Current range 0~50A/Current sensor

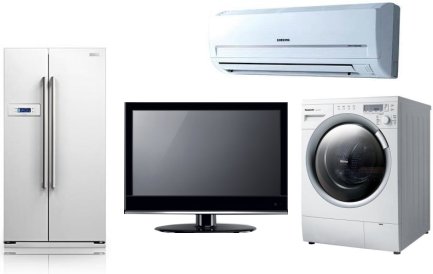

②Performance evaluation of commercial electrical appliances, standby measurement

■ The current range, 50A, rate, and standby power can be measured

■ Minimum power resolution 0.01W

■ Automatically identifies appliance run/stop/standby status and selectively accumulates electrical energy.


Specification


Measurement channel

Three-phase (supports single-phase use)


Measurement parameters/functions

Single-phase: voltage U, current I, active power P, reactive power Q, apparent power S, power factor λ, phase angle Φ, voltage frequency fU, current frequency fI, electrical energy Wh, electrical quantity Ah, electrical (energy) timing Time

Three-phase: voltage ΣU, current ΣI, active power ΣP, apparent power ΣS, reactive power ΣQ, power factor Σλ


Wiring Method

1P2W, 1P3W, 3P3W, 3P4W, 3V3A


signal input

Floating Input (Transformer Input)


Full-scale peak factor

3


Rated voltage range

600V


Voltage accuracy range

0.6~600V


Voltage resolution

0.1V


Rated range of current

50A


Current Accuracy Range

20mA~50A

Current resolution

0.001A


Power Factor Accuracy Range

± (0.1 to 1.0)


Power Factor Resolution

0.01


Voltage/current measurement accuracy

45Hz≤f≤65Hz

±(0.1%×displayed value+0.1%×range)

Active power measurement accuracy

45Hz≤f≤65Hz

±(0.1%×displayed value+0.1%×range)

Active power measurement range

0.44W~11kW@220.0V/相, PF=0.1~1.0


Maximum resolution of active power

0.01W


Frequency measurement range

45Hz~65Hz


Frequency measurement accuracy

±0.1 per cent x display value


Electrical energy measurement range

0 to 999999 MWh (resolution: 0.01 MWh)


Accuracy of electrical energy measurement

±0.2% x display value


Electrical energy timing range

9999 hours, 59 minutes, and 59 seconds

Data update cycle

0.5 / 1 / 2 / 5 [s]


Ratio range

1 to 5000


Alarm function

5 groups, total voltage, total current, total power upper/lower limits, threshold setting


control interface

Standard: RS-232; Optional: RS-485, switch quantity


Overall dimensions

213(W) x 132.5(H without feet) x 384.5(D without terminals) mm


Opening Size

213 x 132.5


Foot height

14.5 mm


Weight

Approx. 4 kg


Power Consumption

Approx. 10VA


n[Conditions] Temperature: 23±5°C, Humidity: 30%~75%RH, Input waveform: Sine waveform, Common mode voltage: 0V, Power factor λ: 1, Peak factor: 3. After preheating.

nAll accuracies plus 0.05% of the reading when the data update rate is 100ms.

nEffects of temperature changes:

Voltage accuracy plus 0.02%/°C of range, current accuracy plus 500 μA/°C Power accuracy plus the product of voltage and current effects.
