Ⅰ. What Is a Coil Tester?

A coil tester is a comprehensive electrical motor tester designed to evaluate the performance and safety of motor coils, windings, and electrical assemblies. Unlike ignition coil testers used in automotive spark systems, industrial coil testers are tailored to measure electrical properties such as insulation integrity, resistance, inductance, and dielectric strength in motor stators and other wound components.

Modern coil testers like the AIP Coil Tester are essential in production, quality control, development, and repair environments — ensuring reliable motor performance and extending product life cycles.

Ⅱ. Why Coil Testing Matters in Motor Manufacturing

Motor coils and windings are critical components in electric motors, generators, and other electromechanical systems. Faults such as insulation breakdown, shorted turns, wiring errors, and poor contact can lead to premature failures, costly downtime, or safety hazards.

A professional coil tester helps manufacturers and technicians:

1. Detect insulation faults before assembly

2. Identify short circuits, turn miscounts, and winding errors

3. Ensure compliance with electrical safety standards

4. Improve production yield and quality consistency

This level of testing is vital in industries such as automotive, aerospace, appliances, robotics, and industrial automation.

Ⅲ. Key Features of the AIP Coil Tester

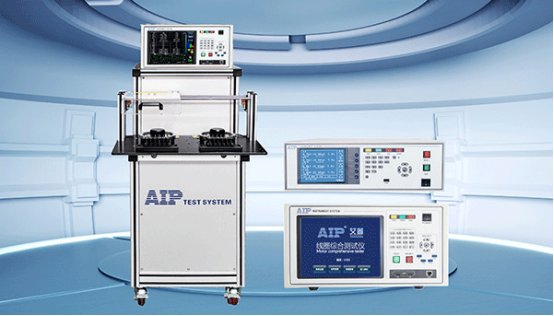

The AIP Coil Tester is engineered for high-precision, comprehensive electrical testing of motor coils and windings, offering:

1. One-Stop Comprehensive Testing

With integrated AC hi-pot, DC resistance, insulation resistance, surge testing, and inductance measurements, users can complete all essential checks with a single instrument — eliminating multiple testing steps.

2. High Precision and Stability

Closed-loop feedback for hipot and surge voltage ensures precise measurements, while four-wire resistance testing and temperature compensation improve accuracy for critical electrical parameters.

3. Flexible Interfaces & Connectivity

Optional USB, LAN, RS232, RS485, and CAN ports with TCP/IP support enable seamless data transfer and integration with PLC or MES systems for automated production lines.

4. User-Friendly Operation

Equipped with professional software and a human-centered interface, the tester supports both touchscreen and keypad inputs, with built-in manuals and permission management for industrial environments.

5. Multiple Test Modes

Available in both automatic and manual modes, the AIP coil tester adapts to diverse testing workflows and scales from bench-top labs to high-volume factory lines.

Ⅳ. What Electrical Tests Does a Coil Tester Perform?

Industrial coil testing goes beyond basic resistance measurements. A professional coil tester like AIP’s model includes:

1. DC Resistance Testing

Checks winding resistance to identify open circuits, shorted turns, or incorrect gauge wire.

2. Insulation Resistance Test

Applies DC voltage between windings and core to evaluate leakage resistance, a key indicator of insulation health.

3. AC Hi-pot Test

Applies high AC voltage to verify dielectric strength and reveal weak insulation before failure.

4. Surge Testing

Uses impulse voltage to detect surges, insulation faults, incorrect turn counts, and embedded wiring errors.

Each of these test items plays a crucial role in ensuring that motors and wound electrical products meet both performance and safety standards.

Ⅴ. Where Industrial Coil Testers Are Used

The AIP Coil Tester is widely employed in:

1. Motor manufacturing and assembly lines

2. Quality assurance (QA) and quality control (QC) labs

3. Research and development (R&D) facilities

4. Industrial maintenance departments

5. Custom motor repair and rewind workshops

Ⅵ. How It Works: A Simple Coil Testing Process

A typical coil testing workflow includes:

1. Connect the Coil to the tester using appropriate wiring fixtures.

2. Select the Test Panel and set test parameters via the intuitive interface.

3. Run the Test automatically or manually to gather electrical characteristic data.

4. Analyze and Store Results for traceability and process control.

This streamlined process improves efficiency and ensures reproducible test results across production batches.

Ⅶ.Conclusion: AIP Coil Tester — Industrial Grade Performance

If your goal is to ensure superior electrical quality and performance in motor coils and windings, the AIP Coil Tester offers a complete, user-friendly, and high-precision solution. With advanced features, reliable measurement accuracy, and flexible integration capabilities, it's an ideal choice for manufacturing, quality assurance, and technical service environments.

Upgrade Your Motor Quality Control with AIP Coil Tester！
