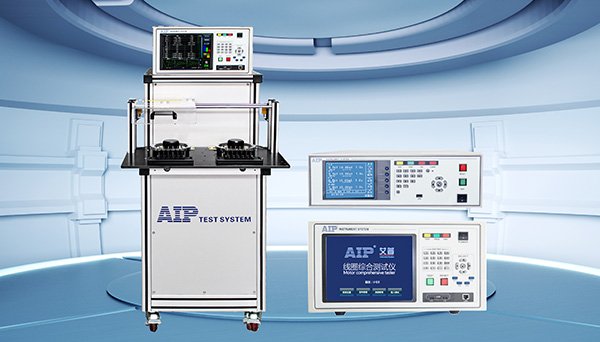

Professional Coil Tester for Comprehensive Electrical Testing

A coil tester is an essential device for quality assurance in motor manufacturing. At AIP, we specialize in advanced coil testers designed for the most demanding applications, Suitable for testing motor windings to ensure motor quality.

Types of Coils We Test

Various motor winding and coil products.

The AIP coil tester is suitable for comprehensive electrical performance testing of various types of motors and coil products. The product has the characteristics of high precision, fast testing, strong adaptability, simple operation, modular design, intelligent design, remote diagnosis, easy maintenance, and rich interfaces.

Key Tests for Motor Windings

Motor stator coil manufacturing (using single or multiple wires) is prone to various faults: Connection errors, output errors, coil wire diameter errors, coil unit reverse embedding, incorrect turns count, poor insulation between surge, surge short circuit, poor insulation between phases, phase-to-phase short circuit, poor insulation between the winding and the core, winding-to-core short circuit, reverse embedding, etc.

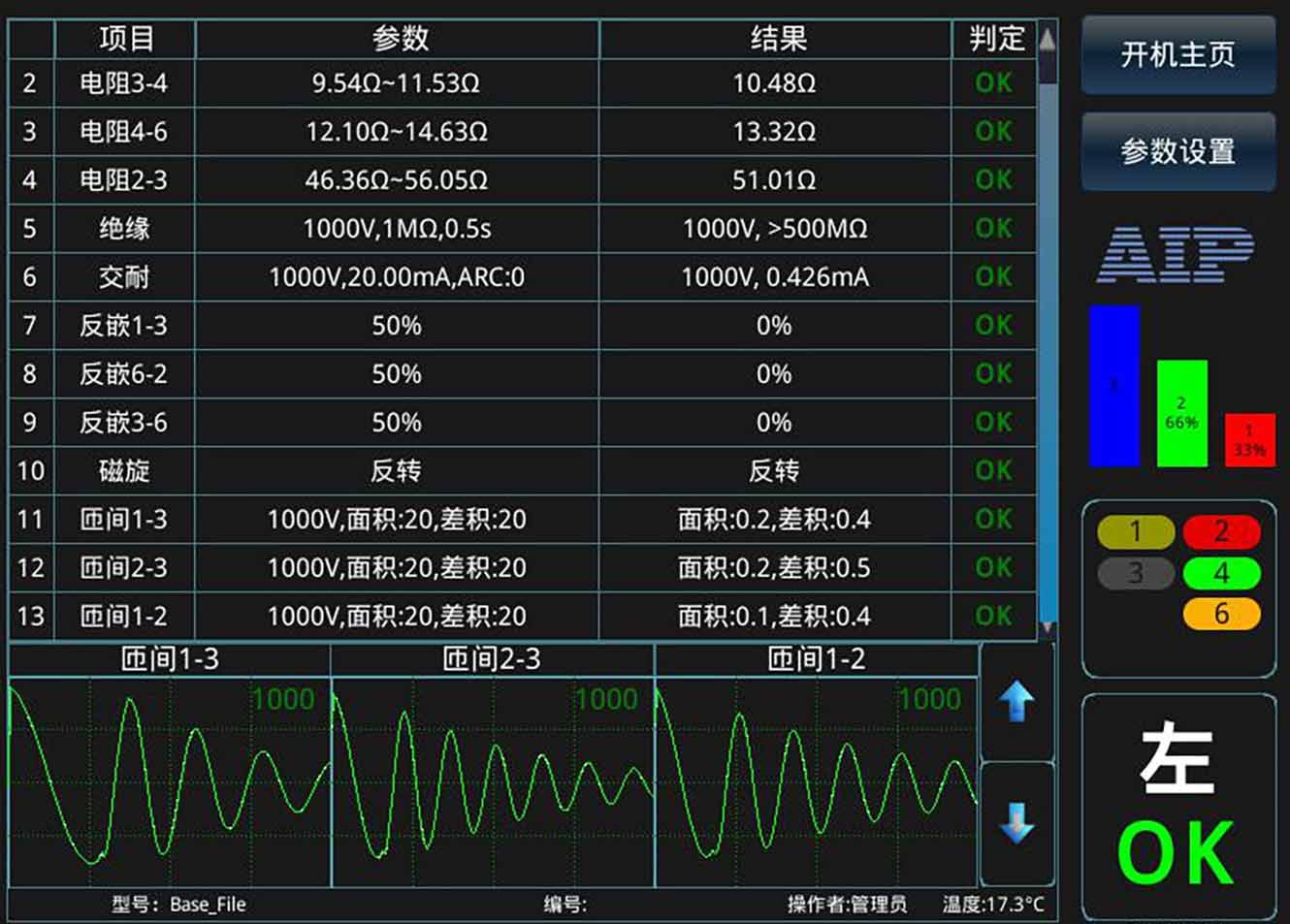

To deal with the above adverse conditions, the motor coil tester has the following test items to choose from:

1.  DC Resistance Measurement：

Measures the DC resistance of each phase winding. Identifies incorrect wire gauge , severe shorts, open circuits, and excessive turn count deviation.

2.  AC Hi-pot Test：

Applies a specified high AC voltage between windings and the core for a duration to verify dielectric strength. Detects insulation breakdown risks or short circuits.

3.  Insulation Resistance Test：

Applies a DC voltage between the winding and core to measure insulation resistance. Evaluates winding-to-core insulation integrity, detecting leakage currents or potential shorts.

4.  Surge Test：

Applies a high-voltage impulse with specific waveform across windings.It can effectively identifies surge insulation failure, shorts, turn count errors,reverse coil embedding, and wiring mistakes through comparative waveform analysis.

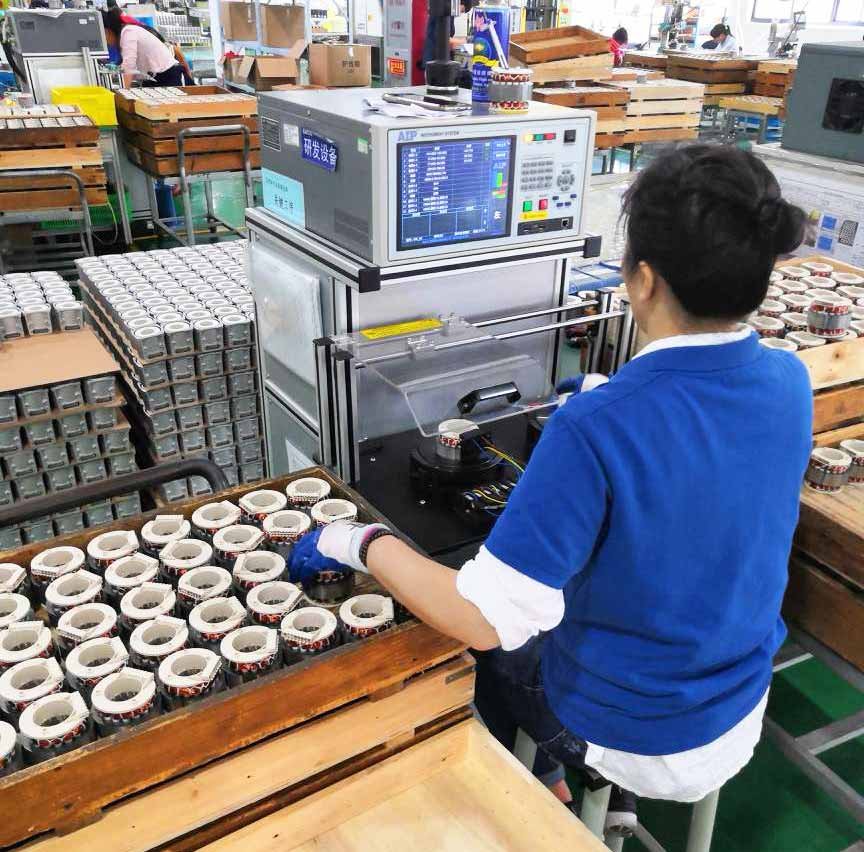

Applications

AIP focuses on global motor testing. Our diverse range of motor coil testers meets a variety of motor stator testing needs. Contact us for a free motor test solution!Not sure which coil tester you need? Contact AIP and we will provide you with a free coil testing solution!
