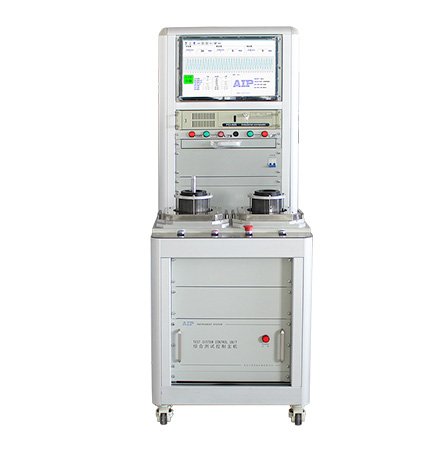

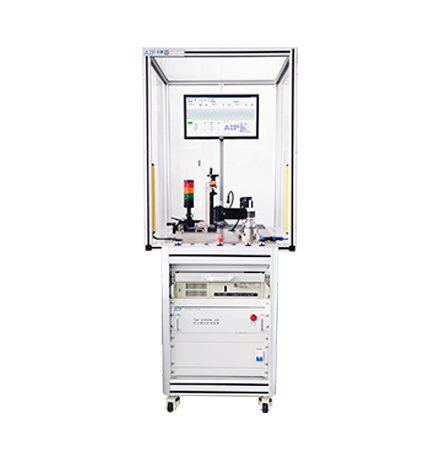

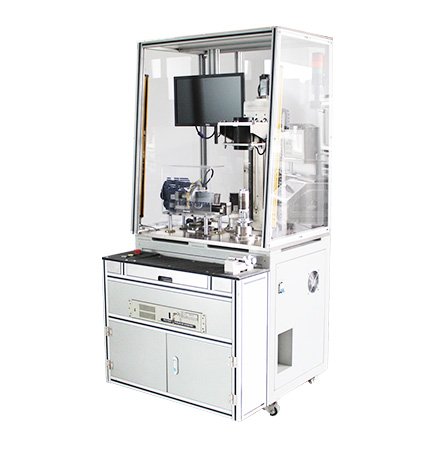

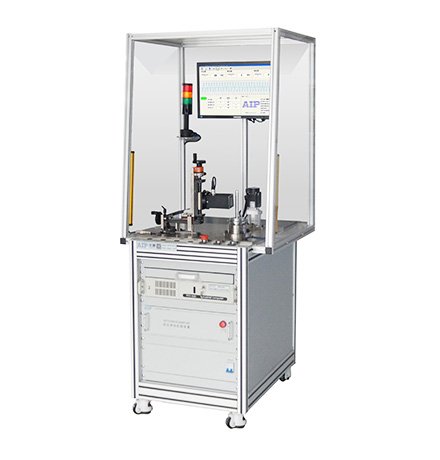

This product, by introducing international advanced testing technology and developing dedicated sensors, automatically analyzes and judges the quality of the conductors based on traditional theories and digital signal processing methods. It is applied to the testing of die-cast rotors in various types of water pump motors, including automotive water pumps, shielded pumps, self-priming pumps, centrifugal pumps, deep well pumps, submersible pumps, sewage pumps, pipeline pumps, and refrigeration pumps.

Ⅰ.Test items:

Broken bars, thin bars, air holes, slot deviation, resistance, reactance.

Ⅱ.Applicable Motors:

Suitable for testing die-cast rotors in various water pump motors, including automotive water pumps, shielded pumps, self-priming pumps, centrifugal pumps, deep well pumps, submersible pumps, sewage pumps, pipeline pumps, and refrigeration pumps.

Ⅲ.Key Features:

1.Data quantification: rotor test data, set upper and lower limits to achieve simple testing.

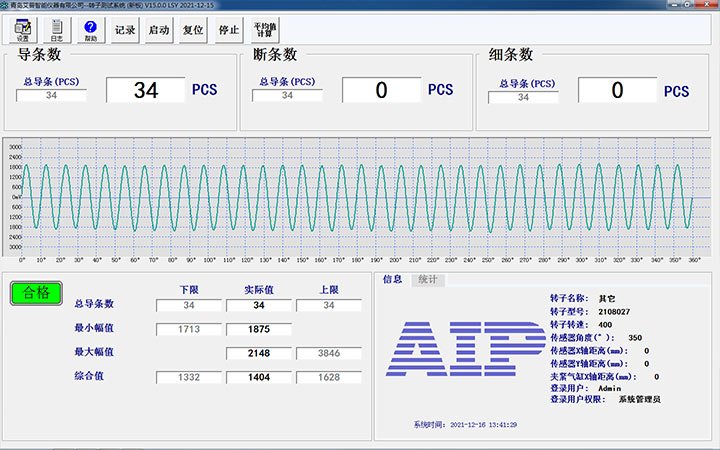

2.Waveform display: product data is displayed in the form of waveform, which is intuitive, clear and simple.

3.Fast clamping: manual loading and unloading, automatic clamping, fast and efficient.

4.High-speed testing: The entire test process of the guide bar takes approximately 3 to 5 seconds, which enhances production efficiency and reduces costs.

5.Full range of items: various types of defective products can be detected.

6.Optional operation: manual or automatic clamping can be selected according to the actual process conditions.

7. Poor Positioning: Defective products can indicate the faulty position of the guide strip.

8. Optional Function: Optional test of die-cast rotor resistance and reactance.

Ⅳ. Common Problems with Water Pump Motor Die-cast Rotor Testing:

1. Material defects in the Water Pump Motor Die-cast Rotor : Water Pump Motor Die-cast Rotor may contain defects such as broken strips, thin strips, pores, or cracks. These defects may weaken the rotor structure, reducing its strength and durability, and impacting the strength and durability of the cast aluminum rotor.

2. Slot deviation: Slot deviation refers to the deviation or tilt of the skew slot (channel) on the rotor from the design position, which may cause rotor imbalance and assembly difficulties.

3. Resistance and reactance: The resistance and reactance of the rotor may become unstable or exceed the specified range, affecting the performance and efficiency of the motor.

If you are interested in the test of the water pump motor die-cast rotor and other motor testers of AIP, please feel free to contact us to obtain more information.
