BLDC motor test

A brushless motor is a kind of motor that uses an electronic commutator to control the speed and torque of the motor, it does not have carbon brushes and a commutator, so it has the advantages of high efficiency, low noise, low maintenance, and long service life, etc. Therefore, it is widely used in many fields, such as aviation, industry, and automobile. Therefore, brushless motors are widely used in many fields, such as aviation, industry, automobile, etc. Therefore, its performance test and reliability are especially important.

I. Brushless motor failures:

Brushless motors are the best tools that can be used for a wide variety of applications, but brushless motors are subject to a variety of malfunctions, as follows:

■ Hall failure

■ Controller damage

■ Motor wire contact failure

■ Out of phase

■ Motor winding overload

■ Loose winding

■ Dirty commutator

■ Bad bearing

■ Degradation of winding insulation breakdown

■ Motor bearing failure

■ Excessive vibration or noise

Ⅱ. Brushless motor test

A brushless motor performance test is very important, it determines the quality of the motor test, AIP has been focusing on brushless motor tests for many years, and now we have some perfect BLDC motor testers.

AIP BLDC motor tester

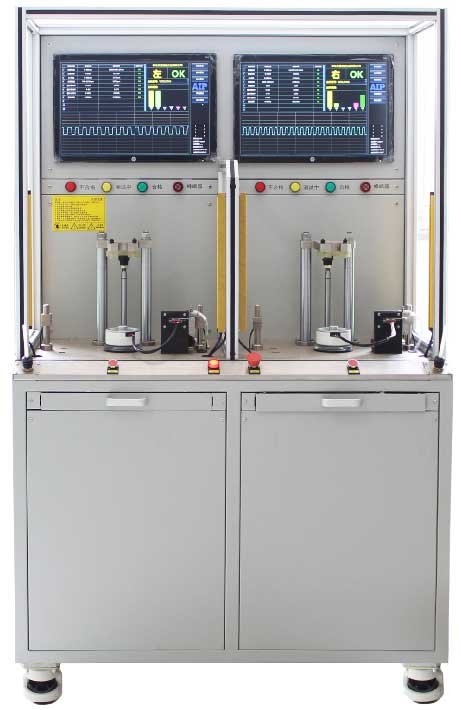

AIP brushless motor test equipment introduction:


AIP brushless motor test equipment is mainly used to quickly and accurately test the comprehensive electrical performance of brushless motors for automobiles, fans, air conditioners, washing machines,s and other products. The system is composed of test tooling, an industrial computer, a test host, system control software, and various function modules. It can realize the safety performance test and load test of brushless motors. After the equipment is started, the test items of the unit will be completed sequentially according to the test flow, and the test will give qualified and unqualified indications and sound and light alarms after the test is completed.

Test items:

Mainly include: AC hi-pot, insulation resistance, no-load performance, load performance (power, speed, Hall characteristics) - [customized products, produced according to customer demand]

 Equipment features:

 Easy-to-remain: supports intelligent self-inspection, remote failure diagnosis, and online software upgrading, insertable card design makes it easy to disassemble and replace.

Integrated design: Integrated innovation design solutions simplify the operation of the workstation.

Fast clamping: simple and efficient clamping solution, convenient for production line personnel to operate and meet the production line production schedule.

Software features: user permission setting function; large storage able to save over 1000 programs.

MES: Support connection with the production management system.

Easy to maintain: support intelligent self-inspection, remote failure diagnosis, and online software upgrading. Insertable card design makes it easy to disassemble and replace.

Easy-to-use: Professional test software, User-friendly interface, built-in help documents, high-performance touch screen, and numeric keyboard as standard.

Multiple interfaces:  the instrument comes with USB, LAN (can be converted to RS232, RS485, etc.)port, support TCP/IP network protocol, and PLC simulation technology. Instrument control and expansion are quite easy.

This tester supports testing of brushless motor internal drive motor and external drive motor, the testing principle of this equipment, equipment operation steps, and other motor tester details, you can contact AIP via Tel/Whatsapp: +86-13969776659, E-mail:, we will provide you with attentive We will provide you with attentive service.

III. Summary

The performance testing and reliability of brushless motors are crucial to the normal operation and safety of the equipment. By testing the resistance, voltage, torque and other parameters of the brushless motor, its performance and reliability can be effectively evaluated. For commutator failure, winding short circuits, and other problems that may occur in the testing process, corresponding solutions and precautions should be taken, which will help to improve the service life and safety of brushless motors.
