Dynamometer Testing Methods for Electric Motors

A dynamometer is a device used to test the performance of a motor, and by loading the motor and other tests, parameters such as power, torque, speed, efficiency, and T-N curves of the motor can be obtained. In the case of the need to test the motor, to improve the testing efficiency and accuracy, it is necessary to use the production line dynamometer test motor method.

AIP Dynamometer

I. Dynamometer motor test preparation

Before conducting the test, it is necessary to make adequate preparations.

First of all, according to the motor to be tested choose the appropriate dynamometer, to ensure that it can meet the test requirements. Secondly, it is necessary to prepare the tools and equipment required for the test, such as motors, power supplies, sensors, and so on. In addition, it is also necessary to develop a detailed test plan, clear test objectives, test steps test time, and so on.

Ⅱ. The dynamometer and motor connection

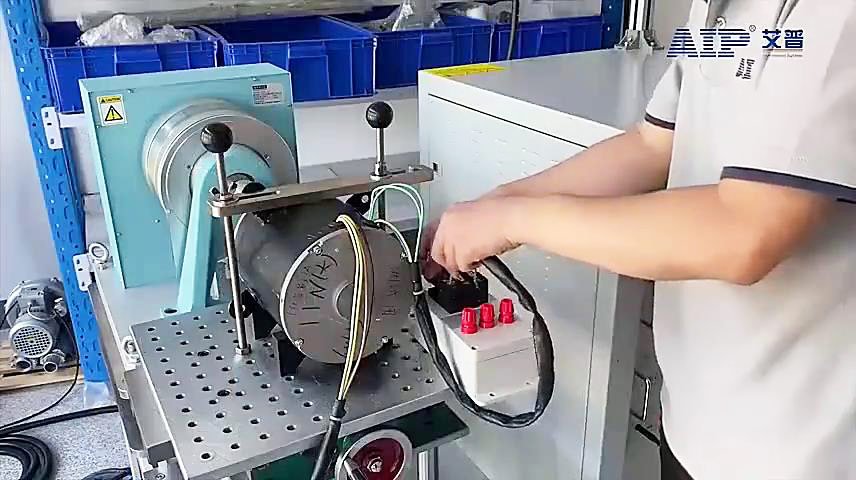

When installing the motor on the dynamometer, it is necessary to ensure that the motor is installed in the correct position and the connection cable is firm and reliable. At the same time, need to check whether the motor and dynamometer power and signal lines are connected correctly to ensure that the motor can work properly. Afterward, the dynamometer needs to be initially debugged and calibrated to ensure the accuracy of the test results.

AIP Dynamometer

Ⅲ. The dynamometer test parameter settings

In the test, according to different motor models and specifications, the dynamometer needs to set up different test parameters.

These parameters include motor speed, torque, power, efficiency, and T-N curve. When setting the parameters, it is necessary to give full consideration to the performance characteristics of the motor and test requirements to ensure the accuracy and reliability of the test results.

Ⅳ. The implementation of dynamometer testing

When carrying out the test, two ways can be used: automatic test or manual test.

Automatic testing is to realize the automated testing of the motor by writing the test program.

Manual testing, on the other hand, requires manual operation of the dynamometer to test each motor one by one.

In the testing process, the dynamometer host will record the test data of each motor as needed, and organize and analyze the data.

V. Analysis and processing of dynamometer test results

After testing the motor with the dynamometer, the dynamometer will automatically analyze and process the test results.

The dynamometer test system will automatically record the result data and curves of the tested motor, and calculate the performance parameters of each motor according to the built-in software. The parameters are compared and analyzed with the template parameters to compare the differences and patterns between different motors. The corresponding test results are derived to provide a basis for subsequent optimization and improvement.

AIP Dynamometer

AIP specializes in global motor testing, providing various types of dynamometer test solutions, dynamometer intelligent test systems for motor testing, high precision, and high efficiency!
